TR6 need the carb mounting stud size for 1974 TR6

Norton47

Jedi Warrior
Offline
Can anybody help?
These seem to be a mish mash on my car, some even have metric size nuts.
What are these suppose to be. Would like stud length, thread per inch for both ends.
Thanks


TR3driver

Great Pumpkin - R.I.P
Offline
Don't have one handy to check, but what I can come up with is : P/N 132873 (factory SPC) which Moss UK has cross-referenced to TE605141. And according to an old Moss UK catalog, TE605141 is 5/16" UNF at both ends and 1-3/4" long.

Not specified, but likely, is that the threads are unequal length, with the manifold side being perhaps only 3/8" and the carb side being longer.


2wrench

Luke Skywalker
Country flag
Offline
I think that 1 3/4 length 5/16 fine thread I can confirm.

Cannot comment with assurance re thread length differences. From what I can see, there is
no difference.


TR3driver

Great Pumpkin - R.I.P
Offline
2wrench said:
Cannot comment with assurance re thread length differences. From what I can see, there is
no difference.
Shouldn't matter, as long as the nut pulls up against the carb and not against the end of the threads.


piman

Darth Vader
Offline
Hello Randall,

I'm surprised, I would have expected U.N.C. for the manifold end of the stud? Still, it's a while since I removed any.

Alec


TR3driver

Great Pumpkin - R.I.P
Offline
piman said:
I'm surprised, I would have expected U.N.C. for the manifold end of the stud?
Me too, but I vaguely recall being surprised when I found fine threads in a GT6 manifold. And I'm just reporting what I found in the documentation, I don't actually have a TR6 to check. (Had a TR6 motor but gave it away.) The Stag studs are a different P/N and of course it's manifold is totally different, so that's no help.

So come on, all you TR6 owners out there. Pile in here and tell me I'm wrong !


bash

Jedi Trainee
Offline
I got these studs from TRF last year. Part number I bought was FHS2513. That's not the part number given in the blue book, but somewhere I found a list of part number supersession data (Rimmer Bros maybe?) and that's where the FHS number came from. They fit fine, though any 5/16 UNF x 1 5/8 inch long stud would probably do just as well.

Hope that helps
Alistair


piman

Darth Vader
Offline
Hello Hondo,

I take it you are not planning to remove the carburettors too often then? From an engineering point of view bolts in that application is an inferior set up.

Alec


2wrench

Luke Skywalker
Country flag
Offline
TR3driver said:
piman said:
I'm surprised, I would have expected U.N.C. for the manifold end of the stud?
Me too, but I vaguely recall being surprised when I found fine threads in a GT6 manifold. And I'm just reporting what I found in the documentation, I don't actually have a TR6 to check. (Had a TR6 motor but gave it away.) The Stag studs are a different P/N and of course it's manifold is totally different, so that's no help.

So come on, all you TR6 owners out there. Pile in here and tell me I'm wrong !

Randall: No need to throw on the flak jacket on my
account.


davidk

Jedi Trainee
Offline

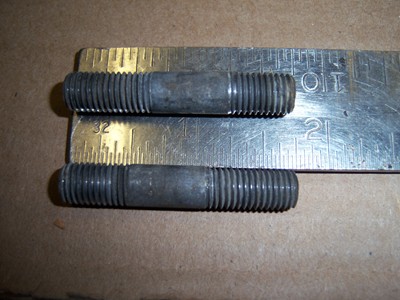

Here's a picture. Threads are 5/16-24.


Attachments

  • 9556.jpg
    52.9 KB · Views: 52

2wrench

Luke Skywalker
Country flag
Offline
Well done, David! That's what I'm talking about.
BCF is good.....and only as good as its members.

Commendable work.

OP
N

Norton47

Jedi Warrior
Offline
Thanks David
That looks like 1 and 3/4 inch long. Correct?
