HIF44 carb... throttle cable connection

[Whitephrog]

I'm struggling with getting my throttle cable properly connected to my single HIF44 carb. Anyone have a photo of their set up?



[Hairyone]

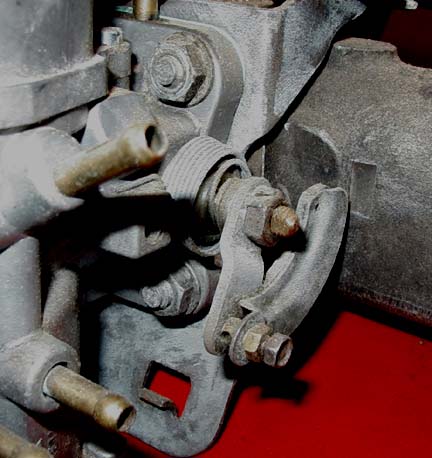

yes I have done this: HIF44 I did have to shorten the arm which the throttle cable goes round. I cut about 3/8" out of it & welded it back together. Without doing this the arm touched the manifold but also didn't get the full throttle travel when the pedal was pushed.

Hope this helps.



[lesingepsycho]

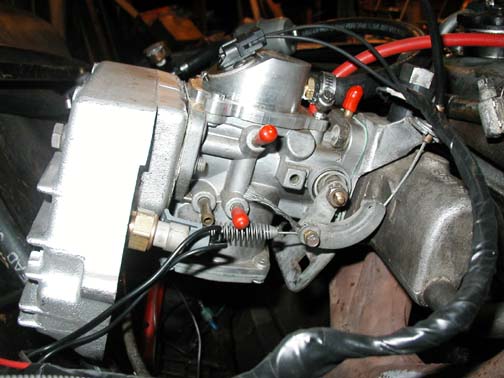

Here's a quick shot of mine. I used a little driveway engineering and tacked a washer to the bracket to hold the cable.

JACK



[Whitephrog]

My set up is a bit different. Do you have a photo of the fitting that clamps the cable to the arm?



[Whitephrog]

Here's three photos of my set up.

www.spritespot.com/gallery/Whitephrog-off-to-the-stripper/DSC03803

www.spritespot.com/gallery/Whitephrog-off-to-the-stripper/DSC03804

www.spritespot.com/gallery/Whitephrog-off-to-the-stripper/DSC03805



[lesingepsycho]

That's strange. The first thing I notice right away is that your linkage rotates clockwise whereas mine rotates counter-clockwise. The next thing I notice is that it seems like the cable is on too much of a straight pull and so you are losing the cam effect of the linkage there. Instead of being so vertical, it's almost like it should be more horizontal.

JACK



[Whitephrog]

Jack

The cable shown in the photos is the choke cable. The throttle lever is above, to the right and in front of the choke lever. For the photos I had disconnected the throttle cable. The question is...what is the proper fitting to connect the throttle cable to the throttle lever?



[lesingepsycho]

Right, I realize that the accelerator cable isn't "actually" present. I was speaking about the accelerator cable "as if" it were there. It still looks to me like the angle isn't very good. No matter, it seems as if I misunderstood the question though. I thought you had said something about the throttle not going 'wide open' or something. So anyhow, here's a better pic of my cable connection. It looks very similar to the cable connection in the other pictures from this thread.

JACK



[Whitephrog]

Jack

The photo helped. I had the right fitting but had it installed improperly.

Now a new problem. When I press the throttle peddle down then release it, the throttle lever doesn't return to idle completely. Could this be a throttle lever spring issue?



[lesingepsycho]

That would be my first guess. The only other possibilites would be the cable sticking in its sheathing or pedal linkage binding. I had problems with my setup returning to idle as well. I had idle set around 700 RPM but when I would let off the gas it would stick right around 1100 RPM. Then if I would give it a little tap, it would drop down to 700..., sometimes. I had to make a custom turbo plenum anyways and so I wound up creating an extra little tab on the plenum that hung down a little further to give the throttle spring better geometry in order to allow it to really pull the throttle down closed. Also went to the hardware store and got a stiffer spring. Setting up a throttle return spring can be tricky. There's a fine line between too soft and too hard both in terms of feel and operation.

JACK
