Bugeye front drum brake picture

paulsherman

Jedi Trainee
Offline
Does anyone have a photo (or diagram) of the front drum brakes for a 1960 Bugeye. I have been putting this car together form boxes of parts I got years ago. I need a picture showing the layout of the backing plate, from the inboard side (wheel cylinders, cross pipe between cylinders, location of the bleed nipple and where the brake line attaches).

All the parts are new and installed, except that when I tried to hook up the brake hose it seemed short. Maybe I have the cross pipe in the wrong position. I have it connected to the upper ports in the wheel cylinders. No pictures of this in the factory manual or in parts catalogs.

Anything will help.
Thank you


jlaird

Great Pumpkin
Country flag
Offline

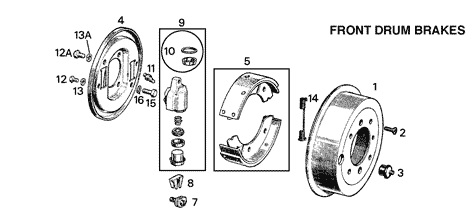

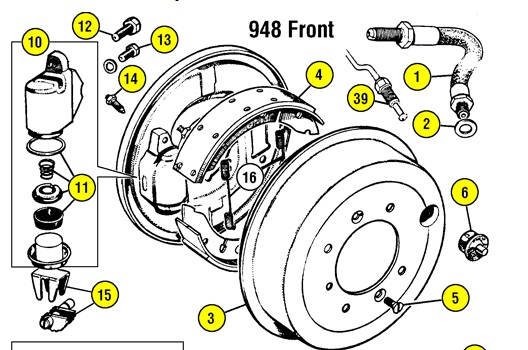

Look at the Moss parts book. It is almost as good as a picture and maybe better.


Whitephrog

Luke Skywalker
Country flag
Offline

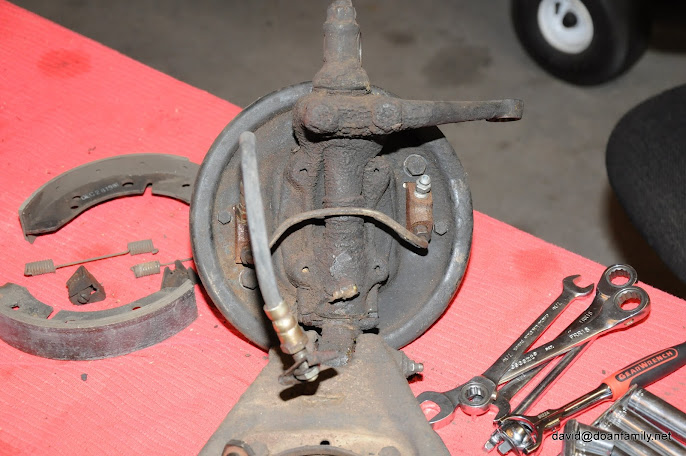

Does this help?

front drum brakes.jpg


jlaird

Great Pumpkin
Country flag
Offline
I should think, and I have been wrong, but a Bugeye is so simple that it could be built with the Moss parts list plus engine specs.

OP
P

paulsherman

Jedi Trainee
Offline
David, never too late. I had the crossover pipe in the top fittings of the wheel cylinders. Corrected that, then tackled the rear brakes, which I was able to fix with the help of others.
Thank you
